This portable electrotherapy console integrates four distinct electrical waveforms into a single control unit, delivering focused nerve modulation and muscle conditioning for at-home fitness and wellness.
Core Treatment Protocols
The TENS module provides twenty-three preset routines alongside two fully configurable programs. Low-frequency impulses travel along peripheral pathways to help manage daily discomfort across common strain areas like the lower back, knee joints, shoulders, ankles, wrists, and elbows.
EMS features thirteen automated sequences and two manual slots, engineered for neuromuscular priming before exercise or active restoration afterward. Operators dictate the exact duration for signal buildup, peak contraction, signal fade, and rest intervals to match specific conditioning goals.
Interferential current runs at a 4000 Hz carrier frequency, utilizing eight built-in settings plus two tunable options to penetrate subcutaneous layers. This medium-frequency approach supports local circulation and stimulates deeper muscular structures, including the pelvic floor.
Russian protocol delivers activation at 2500 Hz through eight presets and two adjustable configurations, emphasizing strength generation, muscular stamina, and post-exertion repair.
Full Parameter Control and Dual Outputs

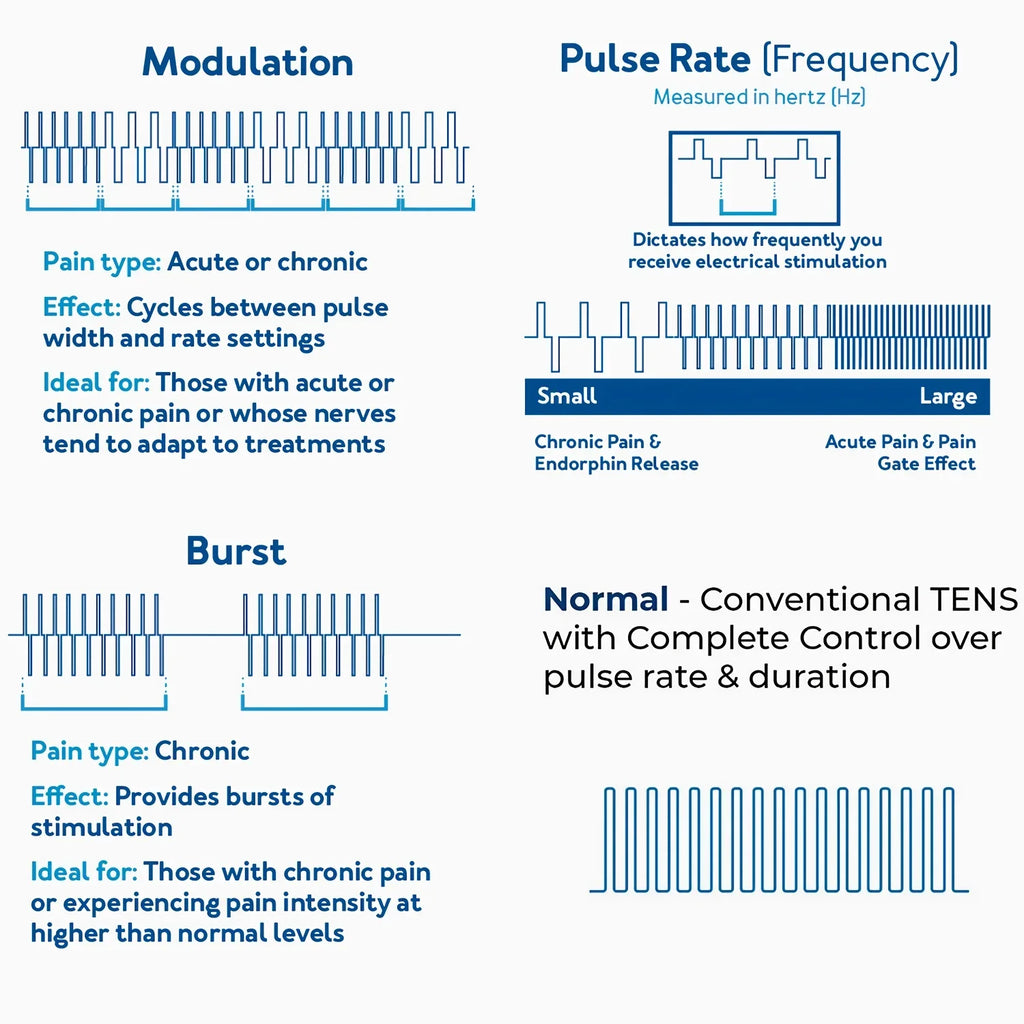

Every variable adjusts independently without skipping through nested menus. Pulse rates span 1 to 800 Hz for standard nerve or muscle routines, and shift to 2000–4150 Hz for the medium-frequency applications. Dial in pulse widths between 50 and 300 microseconds, select from 120 distinct strength steps reaching 120 milliamperes, and lock sessions anywhere from five to ninety minutes out. Warm-up phases last one to nine seconds, while hold durations and cooldown windows each offer six-minute maximums. The IFC and Russian outputs also include independent cycle timers ranging from five to sixty seconds.
Separate Channel A and Channel B ports operate completely autonomously, allowing you to run different waveform settings simultaneously on two distinct body regions.
Setup Procedure
- Attach adhesive conductive patches to the lead wires and secure them to the target zone.
- Flip the power switch and choose between TENS, EMS, IFC, or Russian output.
- Select a factory routine or build a custom schedule using the programmable slots.
- Slide the amplitude control until the sensation feels productive.
- Lock in your preferred countdown length and begin the course.
- Toggle each port independently to treat multiple areas at the same time.
The device carries CE and FCC compliance marks for electronic safety and therapeutic application.
